DFE-551FX

Optical Fiber Fast Ethernet Adapter
Where to buy

Description

The DFE-551FX Optical Fiber Fast Ethernet Adapter connects your desktop PC to a reliable fiber network. The card plugs into a PCI expansion slot inside your PC, transmits data at 200Mbps full duplex. Supporting advanced functions including traffic priority queues and VLAN, this adapter provides a secure environment to let you run bandwidth-demanding applications, such as IP telephony and video conferencing.

Reliable Fiber Connection
The DFE-551FX card allows you to establish secure fiber link for your PC. It can be used to set up a power workstation or a server with a direct fiber connection to a Fast Ethernet switch. Capable of running at 200Mbps full-duplex, this card serves well in a high electro-magnetic interference environment, providing a cable distance of up to 2 km to the switch.

Wake-On-LAN Power Management
The card supports Advanced Configuration Power Interface (ACPI) Wake-On-LAN (WOL), allows your computer to be powered ON/OFF from a remote place. Providing a great utility for power management of the PC, this function allows the administrator to send a wake-up signal to the computer to initiate action at irregular times and from distant locations.

High Performance
With 32-bit bus master operation, the card guarantees the highest performance. Bus master transfers data directly between the card and the host at multi-megabits per second, bypass the host CPU to alleviate its workload.

Flow Control to Minimize Packet Loss
The card’s embedded flow control provides a means to protect against possible data loss during transmission on the network. When connected to a Fast Ethernet switch that supports flow control, the card receives signals from the switch regarding buffer overrun during peak usage periods. The card then delays transmission until the switch is ready again to accept new data.

VLAN to Improve Performance and Security
The card supports IEEE 802.1Q multiple Virtual LAN, allowing you to segment the network to smaller domains to improve performance and security.

IEEE 802.1p Priority Queues Support
With packet prioritization capability, the card allows traffic to be queued as critical and non-critical, permitting your computer to run voice over IP, video-conference and multimedia applications where packets are delivered at
best-effort speeds.

RPL and PXE Remote Boot Options
2 remote boot options are available for selection. Administrators can choose to set up a security scheme for diskless workstations to boot from servers using the traditional Remote Program Load (RPL) or Intel’s Pre-boot Execution Environment (PXE). Stations with boot ROMs installed on the on-board socket can boot O.S. from NetWare, NT and other servers to run applications designated by the administrator.

General features



Standards
• IEEE 802.3u 100BASE-FX Fast Ethernet
• IEEE 802.3ah 100Base-LX10 /-BX10
• IEEE 802.1q VLAN tags
• Local Bus Specification PCI 2.2
• IEEE 802.3x Flow Control
• IEEE 802.1Q VLAN
• IEEE 802.1p
• Advanced Configuration and Power Interface (ACPI) v.1.0

Topology
• star

Protocol
• CSMA/CD

Network data transfer rate
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)

Network cable
• 50/125 micron or 62.5/125 micron multimode fiber optic cable (2 km - in full-duplex mode, 412 m - in half-duplex mode)

Wavelength
• 1310 nm

Fiber connector
• SC type

Diagnostic LEDs
• Link/Active
• 100 Mbps
• Full

RAM buffer
• 2KBytes receive FIFO
• 2KBytes transmit FIFO

Flow Control
• IEEE 802.3x flow control in full duplex operation
• Flow control in half-duplex back pressure

IRQ
• Allocated by system

Address I/O
• Allocated by system

Full/half duplex
• Automatic detection when connected to a network device
• User-selectable via software

Low profile brackets included
• Yes (for DFE-551FX/B1A)

Physical parameters
Power consumption
• 2 W

Dimensions
• 120 x 53 mm

Operating temperature
• 0° to 50°C

Storage temperature
• -25° to 55°C

Humidity
• 5% to 95% non-condensing

Network OS support
• Microsoft Windows 95 / 98 / 98SE / XP / Vista  /Win7 x64/x86
• Microsoft Windows 2000 / 2003 / 2008 x64/x86
• Microsoft NT 3.51 / 4.0
• Microsoft Windows for Workgroups 3.11
• Microsoft Windows CE.NET 4.0 / 4.2
• Microsoft Client for DOS
• NDIS 2/3/4/5 driver
• NDIS 3 driver
• Novell NetWare Client for DOS
• Novell NetWare Client 32 for DOS
• Novell NetWare Server 3.12, 3.2, 4.11, 4.2, 5.0, 5.1
• ODI for DOS driver
• 32 bit ODI LAN driver
• Linux kernel version 2.2.x, 2.4.x and 2.6.x

Remote upload (Optional)
Boot ROM
• RPL Boot ROM (DFE-551P)
• PXE Boot ROM (DFE-551R)

Certificates

Order info

DFE-551FX/B1  Optical Fiber Fast Ethernet Adapter

Pictures

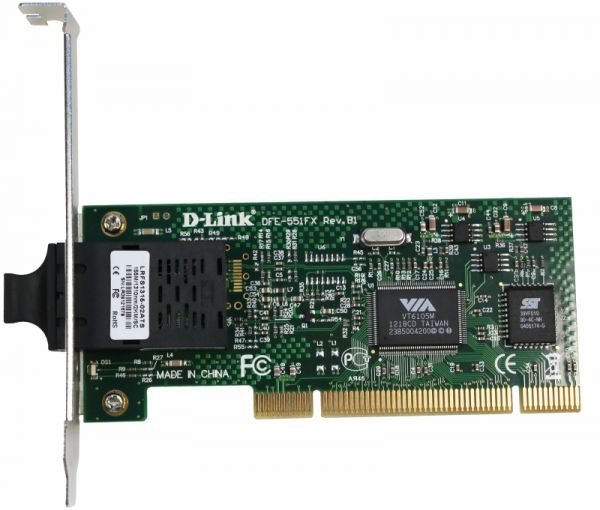

DFE-551FX/B
Front view
