DES-3028EOL EOS

Managed 24-Port 10/100 Stackable Switch + 4 Gigabit Ports + 2 Combo SFP Slots
Kur iegādāties

Apraksts

The DES-3028/3052 series switches are managed Layer 2 Ethernet switches designed as the premium devices in the entry-level network management category. These switches offer very rich functions to let SMB and even enterprises set up a secure and effective departmental network at affordable cost. Outstanding features include high port densities, 41Gigabit uplinks, Power over Ethernet support , comprehensive network security, granular bandwidth control and extensive network management. With these switches, businesses can now optimize their networks at both the function and cost levels for maximum results.

High Port Density & PoE Support. The DES-3028/3052 series provides choices of 24 and 48 Ethernet ports, with or without Power over Ethernet (PoE), in low profile rack-mount cases. Each switch is equipped with 2 Gigabit uplinks, with the SFP supporting both fiber Gigabit and 100BASE-FX fiber connection for specific applications.

Security & Availability. The DES-3028/3052 series supports many security features including Access Control List (ACL), 802.1X Port-Based/MAC-Based Access Control, 802.1X Guest VLAN, and RADIUS/TACACS+ authentication. T o prevent malicious attack and virus/worm affection from overwhelming the switch with unnecessary workload, the DES-3028/3052 series provides D-Link Safeguard Engine and CPU Interface Filtering functions to increase the switch's reliability and availability.

Resilience/Performance Enhancement. To enhance network resilience, the DES-3028/3052 series provides Spanning Tree protocols, including 802.1D, 802.1w and 802.1s for redundant bridge paths. 802.3ad Link Aggregation provides the aggregated bandwidth between switches or server, For Quality of Service (QoS), it supports 802.1p Priority Queues and packet classification based on TOS, DSCP, MAC, IPv4, VLAN ID, Protocol type, User Defined Packet Content, enabling Internet voice, video and streaming media applications to run smoothly.

Traffic Monitoring/Bandwidth Control. Network administrators can define throughput levels for each port to manage bandwidth. The bandwidth control feature provides fine granularity with the ability to define limits down to 64Kbps segments. Broadcast storm control can reduce the level of damage that a virus attack can do to the network. The switch provides IGMP snooping to control multicast transmission, and port mirroring to facilitate diagnostics.

Management. The DES-3028/3052 series supports standard-based management protocols such as SNMP, RMON, Telnet, web-based GUI, SSH/SSL security authentication and DHCP Relay Option 82. With DHCP auto-configuration, the administrator can pre-set configurations and save them in a TFTP server; individual switches can boot their IP from the server and load in the pre-set configurations. D-Link Single IP Management simplifies and speeds up management tasks, allowing multiple switches to be configured, monitored and maintained from any workstation running a web browser through one unique IP address. A virtual stack of the DES-3028/3052 switches can be managed as a single object, with all units identified by a single IP address.

Īpašības

Interface
- 24 10/100BASE-TX
- 2 10/100/1000BASE-T
- 2 Combo 10/100/1000BASE/SFP

Console Port
RS-232 Console Port

Performance
Switching Capacity
12.8 Gbps

64-Byte Packet Forwarding Rate
9.5 Mpps

MAC Address Table Size
8K

SDRAM for CPU
64 MB

Packet Buffer

512 KB

Flash Memory
8 MB

Jumbo Frame

(2048 Bytes Tagged, 2044 Bytes Un-Tagged)

Diagnostic LEDs
- Power (Per Device)
- Console (Per Device)
- Link/Activity (Per Port)
- Speed Indicator (Per Port)

Software Features
Stackability

+  Virtual Stacking:
  - Supports D-Link Single IP Management
  - Up to 32 devices per Virtual Stack

L2 Features
+    MAC Address Table: 8k
+    Jumbo Frames support up to 2048 bytes
+    IGMP Snooping:
  - IGMP v1/v2 Snooping
  - Supports 256 groups
  - Port-based IGMP Snooping Fast Leave
+    Limited IP Multicasting:
  - Up to 24 IGMP fltering profles, 128 ranges per profle
+    MLD Snooping:
  - MLD v1/v2 Snooping
  - Supports 256 groups
  - MLD Snooping Fast Leave
+    IGMP Authentication
+    Spanning Tree:
  - 802.1D-2004 Edition STP
  - 802.1w RSTP
  - 802.1s MSTP
  - BPDU Filtering
  - Root Restriction
+    Loopback Detection (LBD)
+    802.3ad Link Aggregation:
  - Max. 6 groups per device, 8 ports per group
+    Port Mirroring:
  - Supports One-to-One, Many-to-One, Flow-based
   Mirroring
+  Flow Control:
  - 802.3x Flow Control
  - HoL Blocking Prevention

VLAN
+  802.1Q Tagged VLAN
+  VLAN Group:
  - Max. 4K VLAN
+  Port-based VLAN
+  GVRP:
  - Max. 255 Dynamic VLAN
+  Asymmetric VLAN
+  Double VLAN (Q-in-Q):
  - Port-based Q-in-Q
+  ISM VLAN

Quality of Service (QoS)
+  Bandwidth Control:
  - Port-based (Ingress/Egress, min. granularity 64kbps)
  - Flow-based (Ingress, min. granularity 64kbps)
+  4 queues per port
+  802.1p Quality of Service
+  Queue Handling:
  - Strict
  - Weighted Round Robin (WRR)
+  CoS based on:
  - Switch Port
  - VLAN ID
  - 802.1p Priority Queues
  - MAC Address
  - IP Address
  - DSCP
  - Protocol Type
  - TCP/UDP Port
  - User-Defned Packet Content
+  Time Based QoS

Access Control List (ACL)
+  Up to 256 Access Rules
+  ACL based on:
  - 802.1p Priority
  - VLAN ID
  - MAC Address
  - Ether Type
  - IP Address
  - DSCP
  - Protocol Type
  - TCP/UDP Port Number
  - User Defned Packet Content
+  Time-based ACL
+  CPU Interface Filtering

Security
+  SSH v2
+  SSL v1/v2/v3
+  Port Security up to 16 MAC address per port
+  Broadcast/Multicast/Unicast Storm Control
+  Traffc Segmentation
+  IP-MAC-Port Binding (IMPB):
  - ARP Packet Inspection
  - IP Packet Inspection
  - DHCP Snooping
  - Supports 500 Address Binding Entries per device
+  D-Link Safeguard Engine

AAA
+  802.1X:
  - Port-based Access Control
  - Host-based Access Control
  - Dynamic VLAN Assignment
+  Guest VLAN
+  RADIUS Accounting
+  RADIUS and TACACS + authentication for switch access

Management
+  Web-Based GUI
+  Command Line Interface (CLI)
+  Telnet Server/Client
+  TFTP Client
+  XModem
+  ZModem
+  SNMP v1/v2c/v3
+  SNMP Traps
+  RMON v1:
  - Supports 1,2,3,9 groups
+  RMON v2:
  - Supports ProbeConfg group
+  BootP/DHCP Client
+  DHCP Auto-Confguration
+  DHCP Relay
+  DHCP Relay Option 82
+  System Log
+  Dual Image
+  CPU Monitoring
+  SNTP
+  LLDP
+  Debug Command
+  Cable Diagnostics

MIB/IETF Standard
+  RFC2866 RADIUS Accounting
+  RFC2138 RFC2139 RADIUS Auth. for Management Access
+  RFC1492 TACACS + Auth for Management Access
+  RFC2068 HTTP
+  RFC768 UDP
+  RFC783 TFTP
+  RFC791 IP
+  RFC792 ICMP
+  RFC793 TCP
+  RFC826 ARP
+  RFC854 Telnet
+  RFC783 TFTP
+  RFC1157, 1901, 1908, 2570, 2575 SNMP
+  RFC2819 RMON v1
+  RFC951, 1542 BootP/DHCP client
+  RFC3046 DHCP relay
+  RFC3164, 3195 System Log
+  RFC1213 MIB II
+  RFC1493 Bridge
+  RFC1907 SNMP v2 MIB
+  RFC1757, 2819 RMON
+  RFC2021 RMON v2
+  RFC1643, 2358, 2665 Ether-like MIB
+  RFC2674 802.1p
+  RFC2233, 2863 IF MIB
+  RFC2618 RADIUS Authentication Client
+  RFC2620 RADIUS Accounting Client MIB
+  RFC2925 Ping & TRACEROUTE
+  Private MIB


Fiziskie raksturlielumi

MTBF (Hours)
248,271 hours

Heat Dissipation
64.1 BTU per hour

Power Input
100 to 240 VAC, 50 to 60 Hz Internal Universal Power Supply

Power Consumption
18.8W

Dimensions
441 (W) x 207 (D) x 44(H) mm (17.36 x 8.15 x 1.73 inches)

Size
- 19-inch Standard Rack-Mount
- Width,1U Height

Ventilation DC Fan
Fanless

Operating Temperature
0˚ to 40˚ C (32˚ to 104˚ F)

Storage Temperature
-40˚ to 70˚ C (-40˚ to 158˚ F)

Operating Humidity
5% to 95% non-condensing

EMI
FCC Class A, CE, C-Tick, VCCI Class A

Safety
cUL, LVD

Sertifikāti

Informācija pasūtījumam

Layer 2 Managed Switch
DES-3028
24 Port 10/100Mbps + 2 10/100/1000BASE-T + 2 Combo 10/100/1000BASE-T/SFP

Optional Management Software
DV-600S D-View 6.0 Network Management System (Standard Edition)
DV-600P D-View 6.0 Network Management System (Professional Edition)
*Also supports D-View 5.1

Optional SFP Transceivers
DEM-310GT 1000BASE-LX, Single-mode, 10km
DEM-311GT 1000BASE-SX, Multi-mode, 500m
DEM-312GT2 1000BASE-SX, Multi-mode, 2km
DEM-314GT 1000BASE-LX, Single-mode, 50km
DEM-315GT 1000BASE-LX, Single-mode, 80km
DEM-210 100BASE-FX, Single-mode, 15km
DEM-211 100BASE-FX, Multi-mode, 2km

Optional SFP Transceivers
DEM-330T 1000BASE-LX, Wavelength Tx:1550nm Rx:1310nm, Single-mode, 10km
DEM-330R 1000BASE-LX, Wavelength Tx:1310nm Rx:1550nm, Single-mode, 10km
DEM-331T 1000BASE-LX, Wavelength Tx:1550nm Rx:1310nm, Single-mode, 40km
DEM-331R 1000BASE-LX, Wavelength Tx:1310nm Rx:1550nm, Single-mode, 40km

Attēli

DES-3028/A

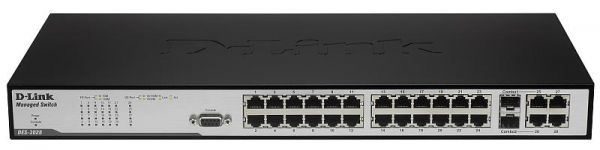

Вид спереди
Вид сзади
