DES-1100-26EOL EOS

24-Port 10/100Base-T + 2 Combo 10/100/1000Base-T/SFP EasySmart Switch
Kur iegādāties

Apraksts

The DES-1100 EasySmart Switch Series features a full set of configurable functions that provide strong performance and scalability. The EasySmart switches include the DES-1100-16, which has 16 10/100Mbps ports, the DES-1100-24, with 24 10/100Mbps ports, and the DES-1100-26, which features 24 10/100Mbps ports and 2 Gigabit combo ports. With an easy-to-use management interface accessible via a PC utility or web browser, the DES-1100 EasySmart Switch Series helps customers to quickly and easily deploy their network. The DES-1100 Series provides a complete and affordable solution for small and medium businesses, and for communities without IT staff. They are suitable for Enterprise deployment, such as in branch offices and meeting rooms that require simple management.

Switch management can be performed through a web management interface or through the SmartConsole Utility. The DES-1100 Series also supports Layer 2 features such as port mirroring, statistics, and IGMP snooping to optimize performance for multicast applications. All models are fanless and enclosed in a metal case.

Power Saving Performance
The EasySmart Switch Series offers best-in-class power savings compared to other models. The DES-1100-16 saves 27.32% more energy, and the DES-1100-24 saves 10.7% more energy than a conventional D-Link unmanaged switch. This gives you an energy-efficient switch that costs less to operate. Additionally, this allows EasySmart Switches to run cooler, run silent, and have a longer lifespan.

Resilience/Performance Enhancement
Equipped with a complete lineup of L2 features, these switches include IGMP snooping and port mirroring. Network maintenance features include loopback detection, which is used to detect loops created by a specific port and automatically shuts down the affected port. The DES-1100 Series also supports 802.1 Quality of Service (QoS) - a mechanism that allows real-time traffic classification into eight priority levels mapped to two queues.

Traffic & Security Features
The DES-1100 series supports 802.1Q VLAN and Port-based VLAN, for traffic segregation. The bandwidth control feature allows network administrators to define the throughput levels for each port in order to manage bandwidth. It also provides fine granularity to define the ingress/egress traffic limits down to 512kbps segments. Storm control enables the detection of when broadcast, multicast, or unknown unicast traffic hits the definable threshold. The switch will start blocking or discarding packets which could otherwise flood the network. The blocked port will be activated only when the broadcast or multicast traffic falls below the defined threshold. Port mirroring helps administrators facilitate traffic diagnostics or track switch performance, and make alterations when necessary.

Versatile Management
EasySmart Switches support an intuitive SmartConsole utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole easily allows customers to discover multiple D-Link EasySmart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this also makes initial setup of the Smart Switches quick and easy. Switches within the same L2 network segment that are connected to the user’s local PC are displayed on screen for instant access. This allows for device discovery and configuration of basic switch settings such as password changes.

Īpašības

Port Standards & Functions
Size
• 19-inch, 1U Rack-mount Size

Interface
• 24 10/100BASE-T
• 2 Combo ports of 10/100/1000BASE-T and Gigabit SFP

Port Functions
• IEEE 802.3 compliant
• IEEE 802.3u compliant
• IEEE 802.3ab compliant
• Supports half/full-duplex operation
• Auto-negotiation
• Auto MDI/MDIX
• IEEE 802.3x Flow Control supports Full-Duplex mode, back pressure when in Half-Duplex mode, and Head-of-line blocking prevention
• IEEE 802.3z compliant

Performance
Switching Capacity
• 8.8Gbps

Max. Forwarding Rate
• 6.54Mpps

MAC Address Table-Size
• 4K Entries

Packet Buffer
• 2.75Mbits

Memory
• 1MB

LEDs
• Power (Per Device)
• Link/Activity/Speed (Per Port)

L2 Features
• MAC Address Table: 4K
• IGMP Snooping
• Static Trunk:
  - 10/100 ports: max. 2 groups per device and 2-4 ports per group
  - 10/100/1000 ports: 1 group per device, 2 ports per group
• Flow Control
• Loopback Detection (LBD)
• Port Mirroring:
  - Supports One-to-One or Many-to-One
  - Supports TX, RX, and both
• Statistics - supports 4 groups:
  - Transmit packet & collision
  - Receive packet & Transmit packet
  - Receive packet & Drop packet
  - Receive packet & CRC packet
VLAN
• 802.1Q Tagged VLAN
• VLAN Group:
  - 26 static VLAN groups
  - Configures VID from 1-4094
• Port-based VLAN
• Management VLAN

Quality of Service (QoS)
• Bandwidth Control:
  - Port-based (Ingress/Egress)
  - Granularity is predefined as: 512kbps/1024kbps/2048kbps/4096kbps/
8192kbps/16384kbps/32768kbps/65536kbps
• 2 queues per port
• 802.1p
• Queue Handling:
  - Strict Priority
  - Weighted Round Robin (WRR)

Security
• Static MAC (Max 128 Static MAC entries)
• Broadcast Storm Control

Management
• Web-based GUI (Supports IPv4)
• SmartConsole Utility
• Password Access Control
• Port Setting: Set Speed, Duplex mode, Flow control
• Configuration File Backup/Restore via HTTP
• Firmware File Upgrade via HTTP

Fiziskie raksturlielumi
MTBF (Hours)
• 490,797 hours

Acoustic
• 0 dB

Heat Dissipation
• 54.46 BTU per hour

Power Input
• 100 to 240 V AC, 50 to 60 Hz Internal Universal Power Supply

Max Power Consumption
• 15.96 watts

Standby Power Consumption
• 4.17 watts

Dimensions (W x D x H)
• 440 x 140 x 44mm

Weight
• 1.9 kg

Ventilation DC Fan
• Fanless

Operating Temperature
• 0 to 40°C

Storage Temperature
• -10 to 70°C

Operating Humidity
• 10% to 95% non-condensing

Storage Humidity
• 5% to 95% non-condensing

EMI
• FCC Class A
• CE Class A
• VCCI Class A
• CCC
• IC
• C-Tick

Safety
• UL/cUL
• LVD

Sertifikāti

Informācija pasūtījumam

DES-1100-26  24-Port 10/100Base-T + 2 Combo 10/100/1000Base-T/SFP EasySmart Switch

Attēli

DES-1100-26/A

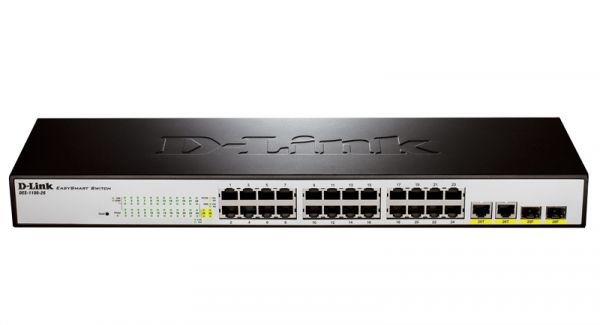

Вид спереди
