DGS-1008D/RUEOL EOS

מתג שולחני 8 פורטים 10/100/1000
היכן לקנות

תאור

The first of the Green Ethernet products the DGS-1008D provides 3 key benefits to end users through its cutting edge innovative eco-friendly technology

  • Reduces power consumption & creates less heat
  • Extended product life
  • Reduces Operating Costs

Power Savings by Number of Connected Ports and Link Status
Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shutdown, switches often remain on and continue to consume considerable amount of power. With Green Ethernet technology, D-Link switches can automatically detect link status and reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings.

Power Savings by Cable Length
The Green Ethernet switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.

Overall Power Savings Per Day
For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day and powered off 14 hours a day, and connected to the switch using 20 meter cables, D-Link's Green Ethernet can save up to 40%* power used for each system.
Note: Switch uses switching power adapter. The cable length which PCs are connected to switch is 20m cables.

Get the blazing speed of Gigabit Ethernet with the D-Link DGS-1008, an 8-port 10/100/1000Mbps Gigabit Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality.

Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Power-Packed
The D-Link DGS-1008 10/100/1000 Mbps Gigabit Switch features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8,000 MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x Flow Control for full duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Designed using industry standards, it is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices and other vendor equipment. The D-Link DGS-1008 10/100/1000 Mbps Gigabit Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.

Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

It also features diagnostic LEDs which display status and activity, allowing you to quickly detect and correct problems on the network.

מאפיינים כללים

Key Features
• Built-in D-Link Green Ethernet Technology
• Unexpensive Gigabit solution for home networks and SOHO networks
• 8-port 10/100/1000 Mbit/s Gigabit
• Switching matrix 16 Gb/s
• Auto MDI / MDIX on all ports
• Switching Method: Store-and-forward
• Ethernet/Fast Ethernet: Full duplex/Half duplex
• IEEE 802.3x Flow Control
• Jumbo-Frames 9000 bytes
• Supports IEEE 802.1p QoS (4 queues, Strict Mode)
• Compliance with the RoHS Directive
• The Plug-and-play

Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (copper twisted pair)
• IEEE 802.3ab 1000BASE-TX Gigabit Ethernet (copper pair)
• ANSI/IEEE 802.3 NWay auto-negotiation and speed of operation
• Flow control IEEE 802.3h
• IEEE 802.1p QoS

Protocol
• CSMA / CD

Data transfer rate
• Ethernet:
   -10 Mbit/s (half duplex)
   -20 Mbit/s (full duplex)
• Fast Ethernet:
   -100 Mbit/s (half duplex)
   -200 Mbit/s (full duplex)
• Gigabit Ethernet:
   -2000 Mbit/s (full duplex)

Topology
• Star

Network Cables
• 10BASE-T:
   - UTP Cat. 3/4/5/5e (100m max.)
   - EIA/TIA-586 100-ohm STP (100m max.)
• 100BASE-TX, 1000BASE-T:
   - UTP Cat. 5/5e (100m max.)
   - EIA/TIA-586 100-ohm STP (100m max.)

Interfaces transfer medium
• Automatic detection of MDI / MDIX on all ports

Indicators
• The port:
   - Link / Activity / Speed
• On the device:
   - Power

Switching Method
• Store-and-forward

MAC-address table
• 4K entries per device

MAC-address Learning
• Automatic Update

Packet Rate
• Ethernet: 14,880 packets per second. at port
• Fast Ethernet: 148,800 packets per second. at port
• Gigabit Ethernet: 1488000 packets per second. at port

RAM Buffer
• 192 Kbytes per device


נתונים פיזיים

Power Input
• 5V/1.2A DC external power adapter

Power consumption
• Power on. (Standby):
    - Input Power: 0.5 W DC, 0.8 W AC
• Max.:
   - Input Power: 4.2W DC, 5.8 W AC

Heat release
• Power on. (Standby):
    - 2,73 BTU / hr
• Max.
    - 19,79 BTU / hr

MTBF
• 1150498 hours

Operating temperature
• From 0 º to 40 º C

Storage temperature
• From -10 ˚ to 70 ˚ C

Humidity
• 5% to 90%, noncondensing

Dimensions
• 164,5 x 112,4 x 35,0 mm

Certificates
• FCC Class B
• ICES-003 Class B
• CE Class B
• C-Tick Class B
• VCCI Class B
• cUL
• LVD

תקנים

הורדות

איורים

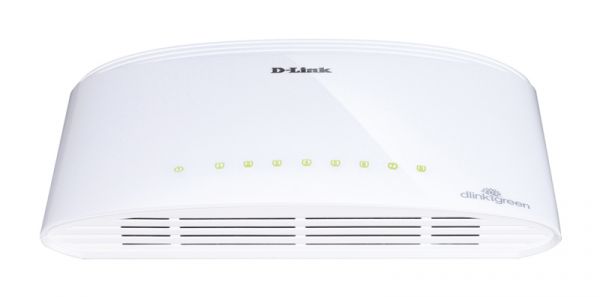

DGS-1008D/RU/G1
