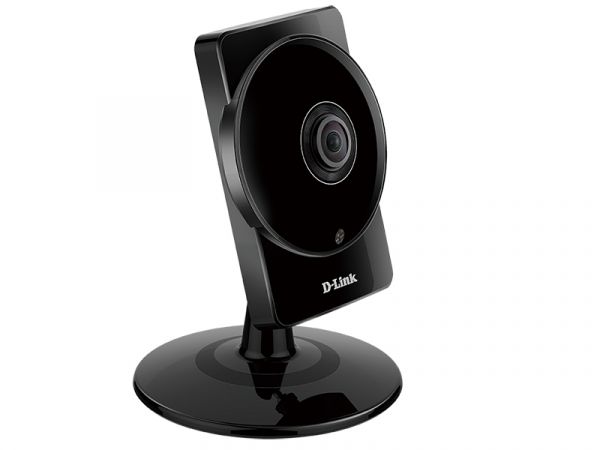

DCS-960LEOL

HD Ultra-Wide View Wi-Fi Camera
Kust osta

Kirjeldus

The DCS-960L HD Ultra-Wide View Wi-Fi Camera boasts a horizon-wide 180° lens that easily captures your entire room, wall-to-wall, in high-quality 720p. Its rotatable head makes ceiling installations easy, and the built-in night vision, and handy mobile app empower you with knowing exactly what is happening, day or night.

Peace Of Mind With 24/7 Complete Coverage
Unlike traditional cameras, the DCS-960L uses an ultra-wide view lens to give you a full 180° field of view, letting you cover an entire room with a single camera. Built-in de-warping technology gives you a distortion-free image, and the 720p HD sensor captures fine details with ease. Send e-mail notifications with snapshots or video clips whenever motion or sound is detected using just the DCS-960L and an Internet connection. Define areas of your camera’s video to monitor for motion, and set volume limits to detect when a loud sound is picked up by the camera. Night time monitoring is possible with the built-in infrared LEDs which allow for night time viewing of up to 16 feet (5 meters), enabling round-the-clock monitoring of a home or small office.

Wireless AC For Speed And Reliability
When setting up a surveillance camera, you need to make sure that it can provide smooth video wherever you decide to install it. The DCS-960L has built-in Wireless AC and takes advantage of the latest Wi-Fi technology to give you a high bandwidth connection to your router for streaming HD video from your camera, and improved range for more flexible placement.

Instant Anywhere Access With mydlink Cloud Service
Enhanced with mydlinkTM support, the DCS-960L makes it easier and more convenient for you to look after your family and home or office environment. With a mydlink service enabled camera, you can stay connected to everything you love from anywhere, anytime. Access your camera through the mydlink website or the mydlink mobile app that lets you view and manage your camera through your tablet or mobile phone, no matter where you are.

Põhiomadused

Camera Hardware Profile
1/2.7” Megapixel progressive CMOS sensor
5 meter IR illumination distance
Minimum illumination:
   - Color (Day Mode), IR LEDs off: 0.5 lux
   - B/W (Night Mode), IR LEDs off: 0.1 lux
   - B/W (Night Mode), IR LEDs on: 0 lux
Built-in Infrared-Cut Removable (ICR) Filter module
8X digital zoom
Fixed length 1.72 mm
Aperture F2.0
Angle of view
   - (H) 180°
   - (V) 120°
   - (D) 180°
Image de-warping
Minimum object distance: 500 mm
Built-in Microphone

Image Features
Configurable image size, quality, frame rate, and bit rate
Configurable brightness, contrast, sharpness, saturation, and hue
Configurable motion detection windows
Time stamp and text overlays

Video Compression
Simultaneous H.264/MJPEG format compression
JPEG for still images

Video Resolution
1280 x 720, 800 x 600, 720 x 480, 640 x 480, 640 x 360, 320 x 240 at up to 30 fps

Audio Compression
G.711

External Interfaces
802.11ac/n/g/a wireless with WEP/WPA/WPA2 encryption
Operates on 2.4 GHz and 5 GHz bands
Maximum data rate of 433 Mbps (PHY rate)
microSD/SDHC/SDXC card slot

Network Protocols
IPV4, ARP, TCP, UDP, ICMP
DHCP Client
NTP Client (D-Link)
DNS Client
DDNS Client (D-Link)
SMTP Client
FTP Client
HTTP Server
PPPoE
RTP, RTSP, RTCP
UPnP Port Forwarding
HTTPS for configuration
Bonjour

Security
Administrator and user group protection
Password authentication
HTTP and RTSP digest encryption

System Requirements for Web InterfacesSystem Requirements for Web Interfaces
Operating system: Microsoft Windows 10/8/7 or Mac OS X 10.7 or higher
Browser: Internet Explorer 8, Firefox 12, or Safari 6 or higher

Event Management
Motion detection
Sound level detection
Event notification and uploading of snapshots/video clips via SMTP or FTP

Remote Management
Configuration accessible via web browser

Mobile support
mydlink Lite app for iPhone, iPad, iPod Touch, Android, and Windows
mydlink+ app for iPad and Android

Dimensions
137.5 x 95.8 x 95.8 mm

Weight
165.0 grams ± 5%

Power
5 V DC, 2.0 A, 50/60 Hz

Power Consumption
4.8 watts maximum ± 5%

Temperature
Operating: 0 to 40 °C
Storage: -20 to 70 ̊ C

Humidity
Operating: 20% to 80% non-condensing
Storage: 20% to 80% non-condensing

Certifications
CE
CE LVD
FCC Class B
ICES
C-Tick
