DES-1005A/E2EOL EOS

5-Port 10/100 Switch
Kust osta

Kirjeldus

The DES-1005A 5-Port 10/100 Switch allows you to quickly set up a fast, reliable, and efficient wired network in your home or office. The DES-1005A is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility.
Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. Connect the DES-1005A to multiple computers to share files and folders, or connect it to a router to share an Internet connection.

Effortless High Speed Networking
The DES-1005A features easy access auto sensing 10/100Mbps Ethernet ports with a LED indicator for each port to quickly distinguish link status and activity. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, to get you the maximum speed possible for each device connected to your network, for faster browsing, video streaming, and online gaming. The DES-1005A also supports Auto MDI/MDIX Crossover, allowing you to connect each port directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.

Reliable Plug and Play Installation
The DES-1005A is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, so right away you’re easily able to connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.

Environmentally Friendly
The DES-1005A features D-Link Green technology, which drastically reduces energy consumption. If there is no computer connected to a port or a connected computer is powered off, the port will automatically enter ‘sleep mode’, greatly reducing the power used for that port without interrupting the network connection. In addition, the switch automatically detects the length of connected Ethernet cables and adjusts their power usage accordingly without affecting performance. This considerably lowers overall energy usage, which both saves you money and helps the environment, without the need for micro-management.

Compact and Silent
The DES-1005A has a sleek and compact design, so that you can place it in any easily accessible location and have it stay out of your way. The power connector and ports are all located at the rear of the switch allowing you to tuck the cables away conveniently. The DES-1005A does not use a fan, so the switch operates silently but effectively, letting you watch movies streamed off the Internet without distraction, or browse the web in peace.

Põhiomadused

Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x flow control
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3az EEE power saving

Switching Fabric
• 1Gbps switching fabric

Topology
• Star

Protocol
• CSMA/CD

Data Transfer Rates
Ethernet:
• 10Mbps (half duplex)
• 20Mbps (full duplex)
Fast Ethernet:
• 100Mbps (half duplex)
• 200Mbps (full duplex)

Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports

Network Cables
10BASE-T:
• UTP CAT 3/4/5/5e (100m max.)
• EIA/TIA-586 100-ohm STP (100m max.)
100BASE-TX:
• UTP CAT 5/5e (100m max.)
• EIA/TIA-568 100-ohm STP (100m max.)

LED Indicators
• Per port: Link/Activity
• Per device: Power

Transmission Method
• Store-and-forward

MAC Address Table
• 2K entries per device

MAC Address Learning
• Automatic update

Packet Filtering/Forwarding Rates
• Ethernet: 14,880pps per port
• Fast Ethernet: 148,800pps per port RAM Buffer
• 48KB per device

Füüsilised parameetrid
Dimensions
• 87 x 47.85 x 21.7mm

DC Input
• External 5V/0.55A power adapter

Power Consumption
Power On (Standby):
• DC input: 0.1 watts
• AC input: 0.69 watts
Maximum:
• DC input: 0.9 watts
• AC input: 1.6 watts

Heat Dissipation
Power On (Standby):
• AC input: 2.355BTU/h
Maximum:
• AC input: 5.461BTU/h

Temperature
• Operating: 0 to 40°C
• Storage: -10 to 70°C

Humidity
• Operating: 10% to 90% RH non-condensing
• Storage: 5% to 90% RH non-condensing

Certifications
• FCC Class B
• CE Class B
• UL
• C-Tick Class B
• CB

Sertifikaadid

Sidustooted

DES-1005A/E1  5-Port 10/100 Switch

Pildid

DES-1005A/E2/E
Tagantvaade

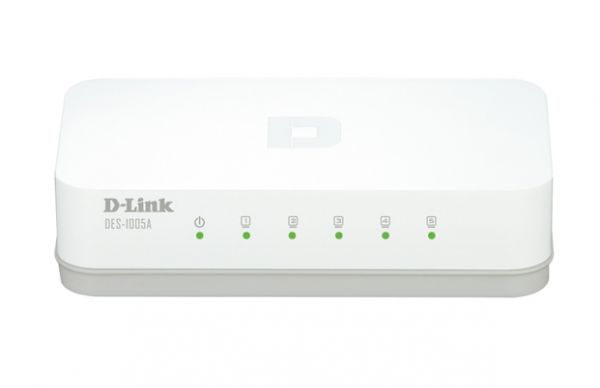

Eestvaade
Vasakvaade
