DGS-3610-26EOL

Hallatav 3+ taseme xStack seeria kommutaator, 12 x 10/100/1000Base-T Gigabit Ethernet porti + 12 x 10/100/1000Base-T/Mini GBIC (SFP) kombo porti + 2 laienduspesa
Kust osta

Kirjeldus

The xStack DGS-3610 series of the D-link’s next generation Layer 3 Gigabit switches delivers performance, flexibility and enhanced security for the MAN (Metropolitan Area Network). Two models are available for selection, the DGS-3610-26 and DGS-3610-26G. Each switch provides 24 Gigabit ports and two optional 10-Gigabit ports in a low-profile rack-mount case. The DGS-3610-26 is equipped with 12 10/100/1000BASE-T and 12 combo 10/100/1000BASE-T/SFP ports, and the DGS-3610-26G supports 12 SFP and 12 combo 10/100/1000BASE-T/SFP ports. The 10/100/1000BASE-T ports provide inexpensive copper Gigabit connection to the local nodes. While the SFP slots and our wide-range of SFP transceivers offer flexible long/medium/short fiber connections suitable for FTTX and MAN applications. Two open slots on the back of each switch allow users to install two optional single-port 10-Gigabit XFP modules for copper or fiber  connections. These 10-Gigabit connections can be used for switch unit stacking, or attachment to a 10-Gigabit backbone or servers.The switches offer advanced L3 features including IPv4/v6 routing, BGP, QoS and ACL filtering. Packet routing and protocol filtering/inspection enable the switch act as a Layer 4 switch.

High Reliability
The DGS-3610 switches support a number of link reliability technologies including Rapid Ether Ring Protocol (RERP). RERP is a network protection mechanism which ensure normal operations without impacting network convergence time. It can rapidly start up the backup link when a link or node on the Ethernet ring is disconnected. Other network resiliency features include Spanning Tree, Rapid Spanning Tree and Multiple Spanning Tree protocol support.

Comprehensive IPv6 Support
Emerging applications such as Internet-enabled wireless devices, home and industrial appliances, Internet-connected transportations, integrated telephony services, sensors networks, and distributed computing or gaming requirements are further addressed to ensure the continued growth of the Internet. The use of globally unique IPv6 addresses simplifies the mechanisms used for reachability and end-to-end security for network devices. This vital functionality is crucial for applications and services that are driving the demand for IP addresses.

Enterprise Wide Security
Access security is provided through comprehensive policy-based ACL, port security, IP-MAC-Port binding features and Defeat IP Scan. Meanwhile malicious attacks hidden behind control protocols are thwarted to prevent the switch’s CPU from being overwhelmed with redundant tasks and cause performance degradation. The DGS-3610 also supports SSH v2 and SNMP v3 functions to ensure secure management access to switches with authentication and encryption of network management traffic.

QoS & Bandwidth Management
The DGS-3610 supports numerous advanced traffic management options including flow-based bandwidth control and broadcast/multicast storm control. It also supports egress traffic bandwidth control with minimum granularity of 64Kbits. With a combination of Rate Limiting function (applicable to CPE subscribers)and access control-based accounting, the DGS-3610 provides useful functions for carriers that offer services to home users in a Metropolitan Ethernet Network.

Comprehensive Management
A comprehensive set of management features is provided to ensure enterprise wide visibility and control for configuration, access/traffic monitoring and troubleshooting to network administrators. These features are accessible through a CLI, Telnet or SNMP console. RMON monitoring, and complete debug system information, alert information and interface management are also supported.

Põhiomadused

   Stackability

  • Up to 8 devices per stack
  • Suppor ts Linear and Ring topology
  • Up to 40G stacking bandwidth
  • Allows trunking or mirroring to span multiple units of the stack

L2 Features

  • 6K MAC Address Table
  • IGMP snooping
  •    1K Groups
  •    IGMP Proxy
  • Spanning Tree
  •     802.1D STP
  •     802.1w RSTP
  •     802.1s MSTP
  • Rapid Ether Ring Protection (RERP)*
  •     Supports up to 16 domains*
  •     Recovering L2 traffic in 500ms*
  • Rapid Link Detection Protocol (RLDP)
  • 802.3ad Link Aggregation
  •   12 Trunk Groups, 8 Por ts per Group
  • Por t Mirroring:
  •   One-to-One
  •   Multi-to-One
  •   Tx/Rx/Both por t mirroring
  • Head of Line Blocking Prevention

VLAN

  • 802.1Q Tagged VLAN
  • 802.1v
  • VLAN Group: 4K
  • Port-Based VLAN
  • Super VLAN
  • Private VLAN
  • Double VLAN (Q-in-Q)
  •    Port-Based Q-in-Q
  •    Selective Q-in-Q*

L3 Features

  • Max 2K IP interface
  • Secondary IP
  • VRRP
  • IPv6 Tunneling
  •    Manual Tunnel
  •    ISATAP
  •    6- to- 4

L3 Routing

  • Routing Entries: 12K
  • L3 Forwarding Entries: 8K
  • Static Routes: Max. 1K
  • Policy Based Route
  • Multi Path Router
  •    ECMP /WCMP
  • RIP
  •    RIP v1/v2
  •    RIPng (IPv6)
  • OSPF
  •    OSPF v2
  •    OSPF v3 (IPv6)
  •    Stub/NSSA Area
  • BGP v4
  • BGP+ v4 (IPv6)*

L3 Multicasting

  • PIM-DM
  • PIM-DM v6 *
  • PIM-SM
  • PIM-SM v6*
  • PIM-SSM
  • PIM-SSM v6*
  • IGMP v1/v2/v3
  • PIM Snooping

QoS (Quality of Service)

  • 802.1p Class of Service (CoS)
  • 8 queues
  • Queue Handling:
  •    Strict
  •    Weighted Round Robin (WRR)
  •    ST+WRR
  • CoS based on:
  •    MAC address
  •    VLAN ID
  •    802.1p
  •    IP address or IP prefix
  •    DSCP/IP precedence
  •    IP protocol type
  •    TCP/UDP por t number
  • Time based QoS

ACL (Access Control List)

  • 1790 ACL Rules
  • ACL Based on
  •    MAC Address
  •    VLAN ID
  •    802.1p Priority Queues
  •    IP Address or IP Prefix
  •    DSCP/IP Precedence
  •    IP Protocol Type
  •    TCP/UDP Por t Number
  • Time-based ACL

Security

  • CPU Protection Policy (CPP)
  • SSH
  • Port Security
  • Defeat IP Scan
  • IP-MAC-Por t Binding

Management

  • Command Line Interface (CLI)
  • Telnet Server
  • TFTP
  • DHCP Server
  • DHCP Relay
  • XModem
  • SNMP v1/v2c/v3
  • SNMP Trap
  • System Log
  • RMON v1
  •   Support 1,2,3,9 Groups
  •  DNS Client
  • Debug
  • NTP/SNTP
  • File System
  •   Flash storage media
  •   Multiple Firmware
  •   Multiple Configuration
  • System Status LED

* Function available in future firmware upgrade


Füüsilised parameetrid

Sertifikaadid

Sidustooted

Pildid

DGS-3610-26/A

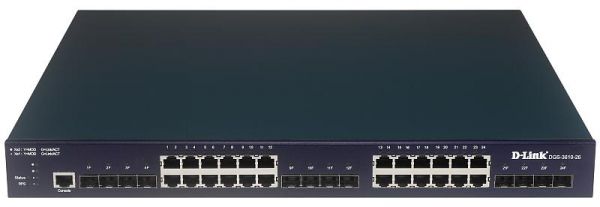

Eestvaade
